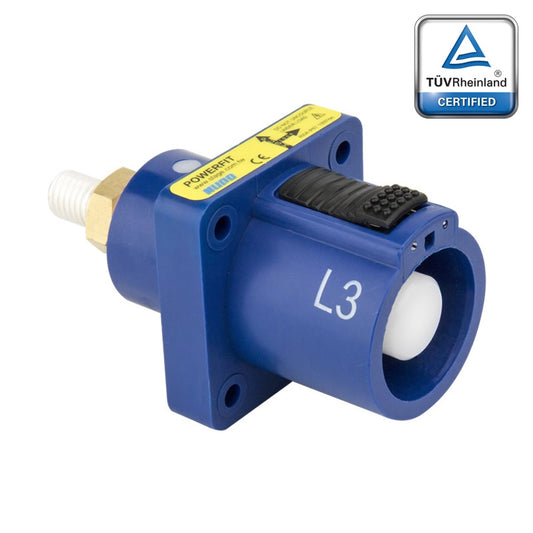

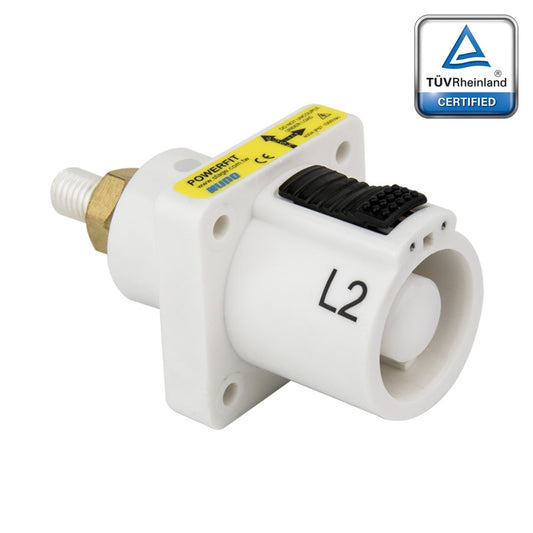

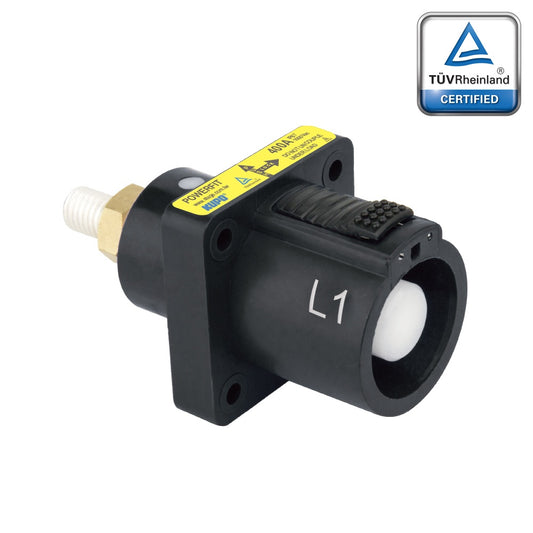

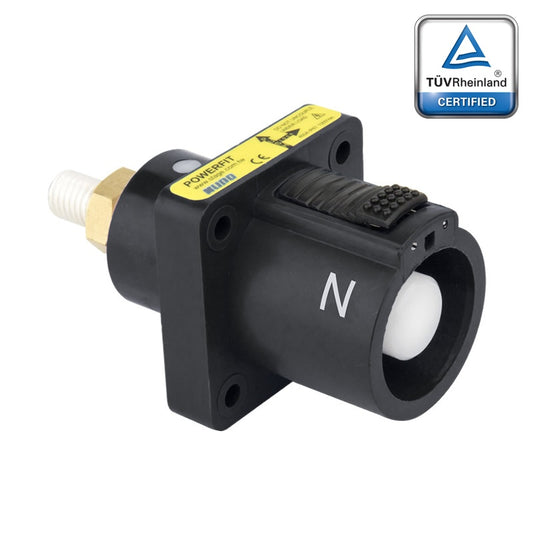

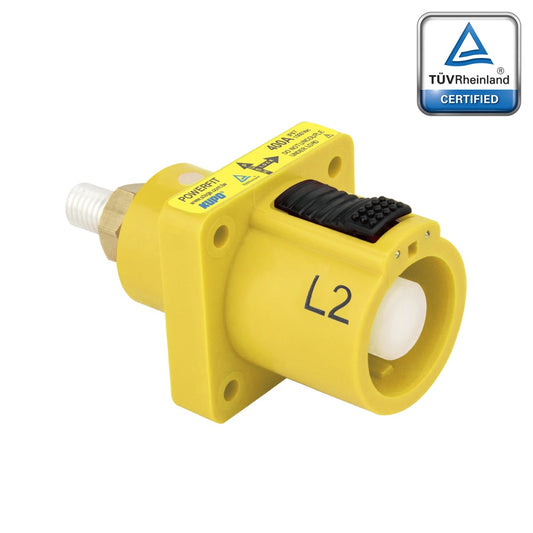

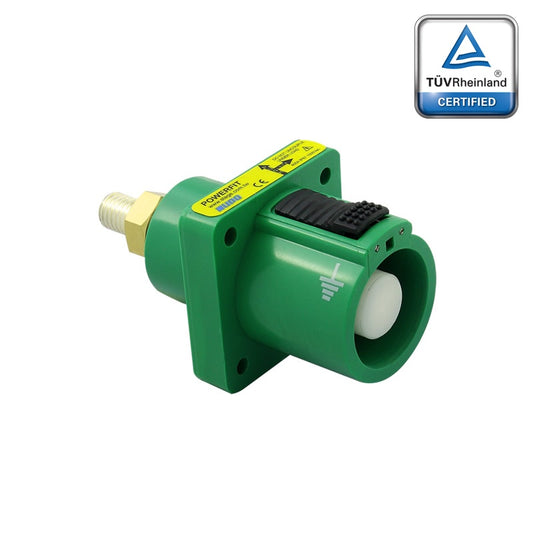

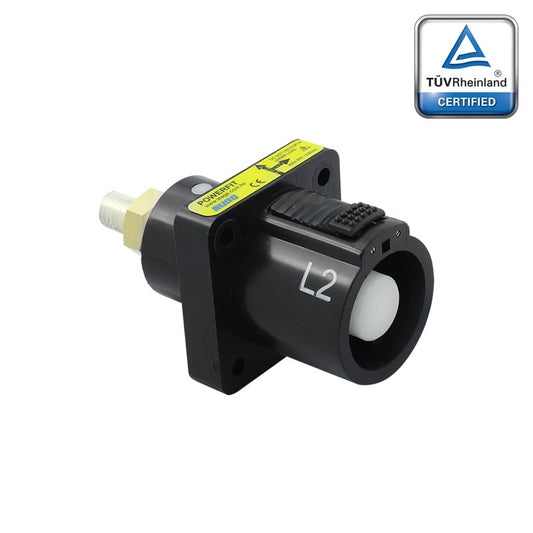

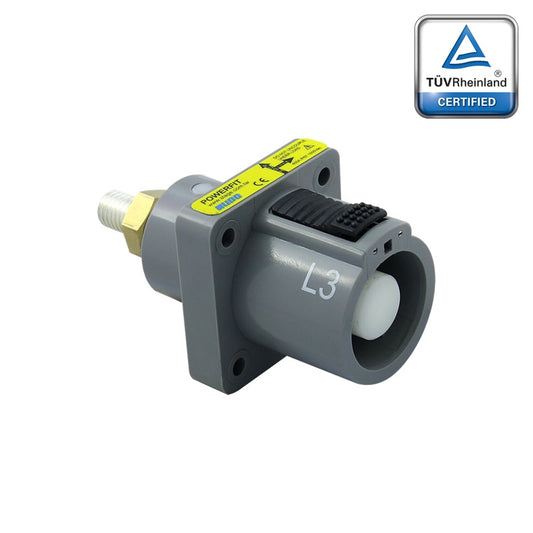

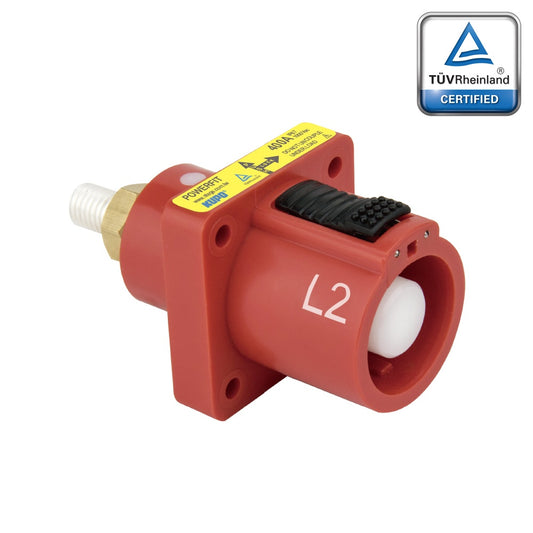

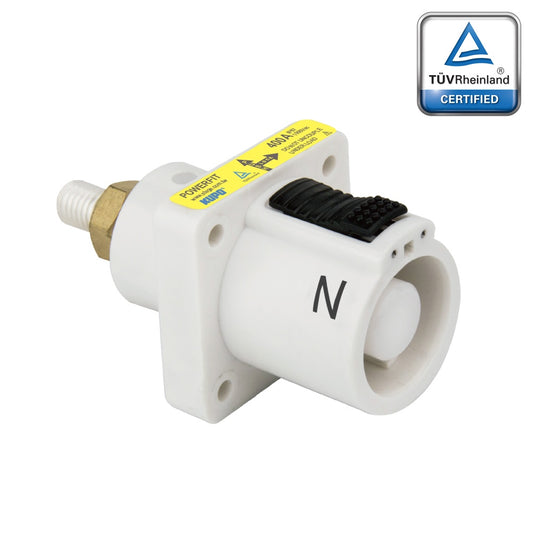

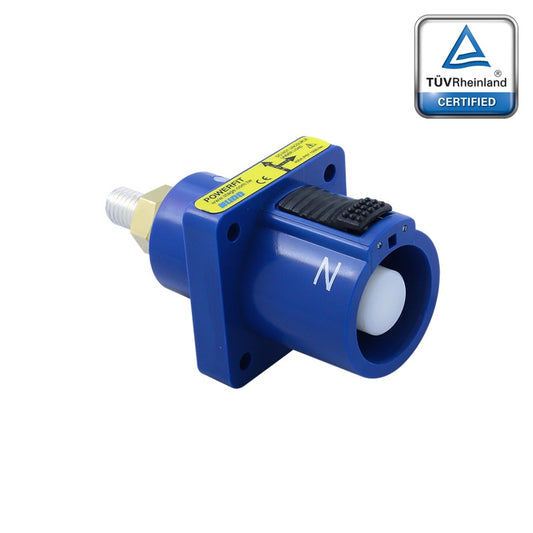

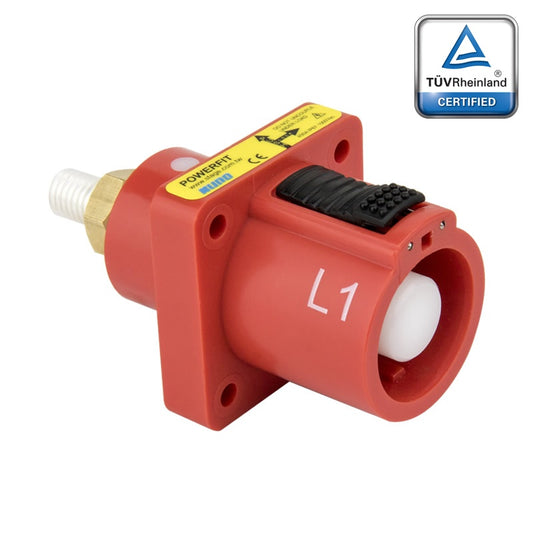

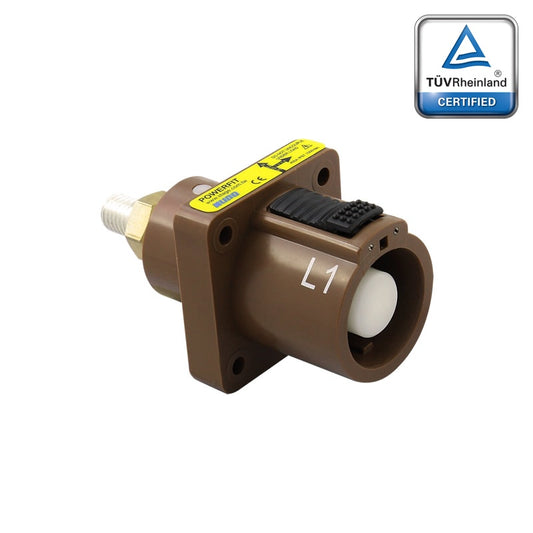

PowerFit 400A panel mount source connectors provide fixed, panel-mounted connection points with the male contact and key-release pin. The M12 threaded post with brass nut and washer secures the connector to enclosures, distribution boxes, and switchgear panels through a 42 x 42mm cutout. Four 5.5mm fixing holes on the flange prevent rotation under repeated mating cycles. IP 2X finger protection is built into the contact design. Panel mount source connectors serve as the power output point on distribution equipment, mating with line drain connectors that carry power downstream through the cable run. Available in all 13 phase and color variants. Specified for permanent and semi-permanent installations in power distribution rooms, generator paralleling panels, and outdoor weatherproof enclosures.
